JZ-825 PRO Giant Diesel Common Rail High Pressure Smart HEUI EUI EUP Injector Heavy Lifter Machine Pump Diagnostic Test Bench
The JZ-825 PRO multi-function test bench features full automatic control for convenient repair and testing of Euro-3 to Euro-6 injectors and high-pressure pumps. This advanced system can test thousands of injectors and high-pressure pumps with comprehensive experimental data collection.
Optional functions include unit pumps & unit injectors, medium pressure injectors testing, actuated pumps, and more. Designed primarily for heavy engines used in vessels, excavators, lifters, and similar applications, the machine includes an integrated crane for handling heavy pumps safely.
Key Functions & Capabilities
- EUl & EUP testing capability

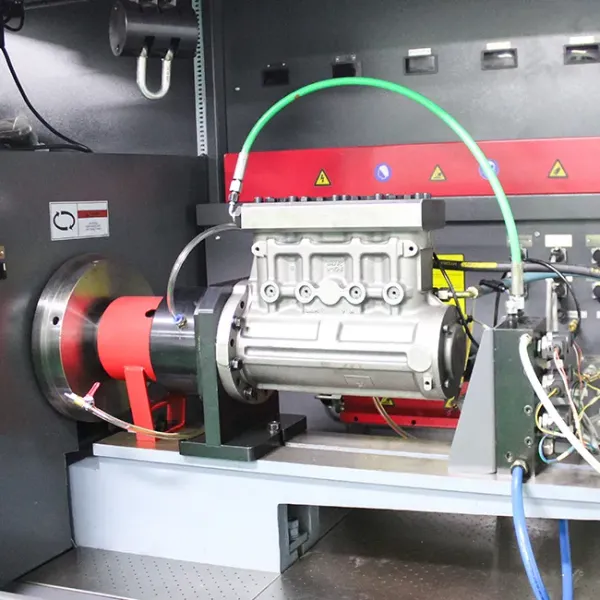

- Common rail high pressure oil pump testing
- HEUI injector testing
- HEUI actuation pump testing
- Solenoid valve injector testing
- Piezoelectric ceramic injector testing
- 4-pin injector testing (optional)
- 4-cylinder common rail oil pump testing (optional)
- X15, Q60 single pump testing (optional)
- Remote upgrade, system update, and technical guidance
- Simultaneous testing of 6 injectors (optional)
- HPI Actuator testing (optional)
- Electronic measuring system
- Eight DRV configuration
- Oil level lowest limit alarm
- Imported flow sensor technology
- Oil nozzle opening pressure flow measurement
- Flow sensor linear calibration
- Common rail with filter function
- High pressure filter blockage reminder
- 9 flow sensor metering units
- Jet drive and system voltage monitoring
- Internal integrated oil actuated pump and high pressure common rail pump
- Expandable operating room without switching
- Simultaneous testing of 4-6 injectors (non-rotation solenoid valve switching)
Product Details
Technical Specifications
| Model Number |
JZ-825 PRO |
| Color |
Green |
| Frequency |
50Hz / 60Hz |
| Motor Height |
180 MM |
| Main Output |
45 KW |
| Speed |
0~4000 RPM |
| Speed Control Mode |
Frequency Converter |
| CR Pump Motor Output |
5.5 KW |
| Diesel Supply Motor Output |
0.75 KW |
| Engine Oil Pump Motor Output |
0.55 KW |
| Oil Tank Cooling Output |
370 Watts |
| Power |
380V AC 3-Phase-4-Wire |
| Cooling/Heating |
Air Conditioning (5P) |
| Diesel Tank Volume |
120L Filtration Accuracy:3μm |
| Engine Oil Tank Volume |
40L Filtration Accuracy:5μm |
| Fuel Temperature |
40ºC ± 2ºC |
| Nozzel / Pump Flow Sensor |
Gear Flow Sensor |
| Flow Metering Unit |
0.008~2L /min |
| Control Return Voltage |
DC 12V / DC 24V |
| ECU Internal Boost |
0-200 VDC(max) |
| Max Common Rail Pressure |
2700 Bar |
| Rail Pressure Testing Accuracy |
±5 Bar |
| Max Medium Common Rail Pressure |
250 Bar |
| Diesel Oil Supply Pressure |
0~2.5 Mpa |
| Oil Supply Pressure |
0~2.5 Mpa |
| Injection Frequency |
400-6000 n/M |
| Pulse Width |
100-3000 μs |
| Machine Dimension |
2510*1410*1960 MM |
| Packing Dimension |
2580*1500*2210 MM |
| Net Weight |
1682 KG |
| Gross Weight |
1934 KG |
